Not Carbon. Not Sorry.
A lineage of fast aluminum shaped over decades—smooth welds, clean geometry, road-true handling. CAAD14 is built for thepurefeel ofroadriding: the pull, the side-glance, the shoulder-to-shoulder sprint, the arms-up finish.

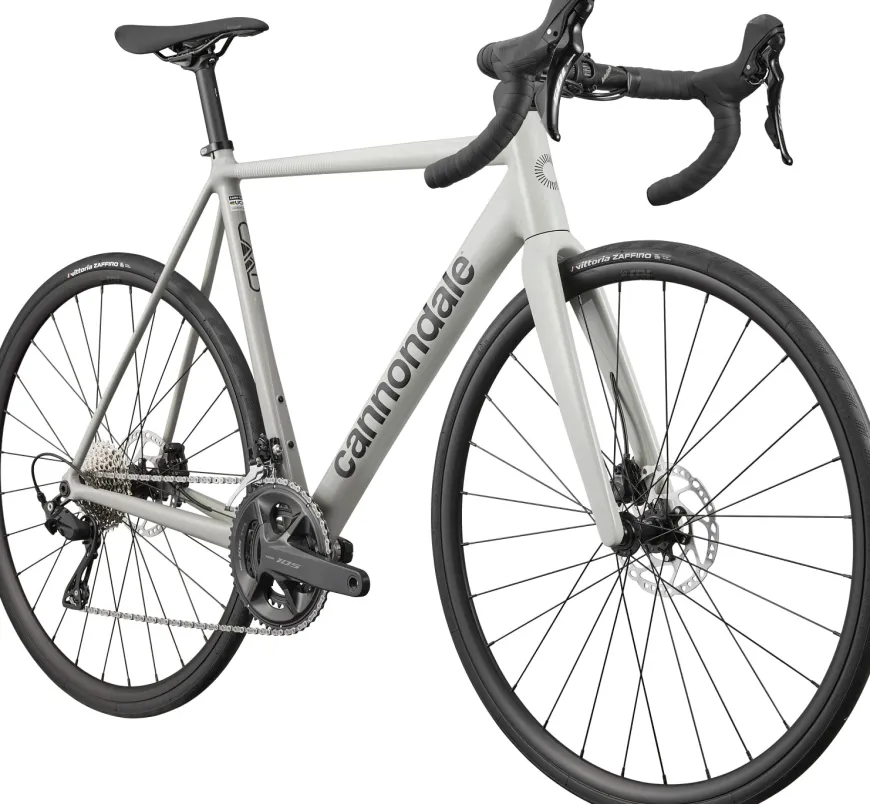

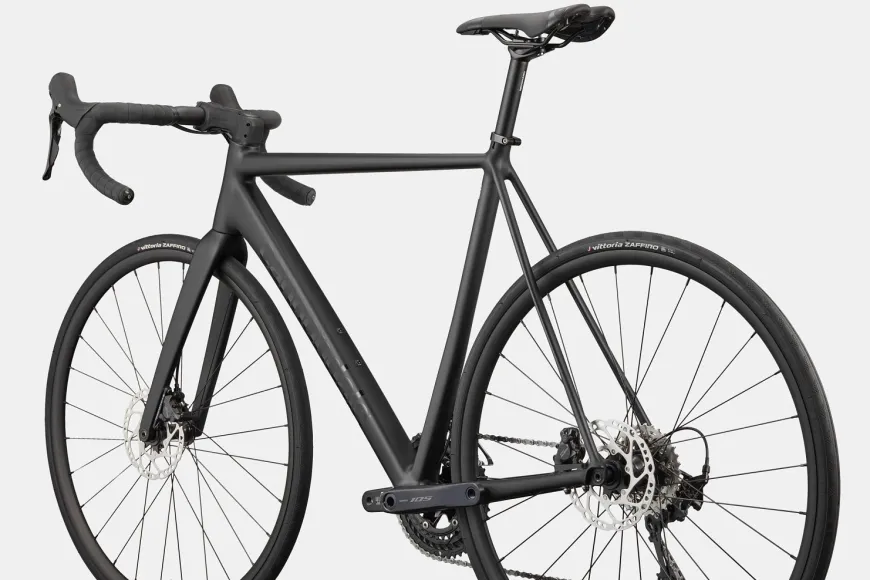

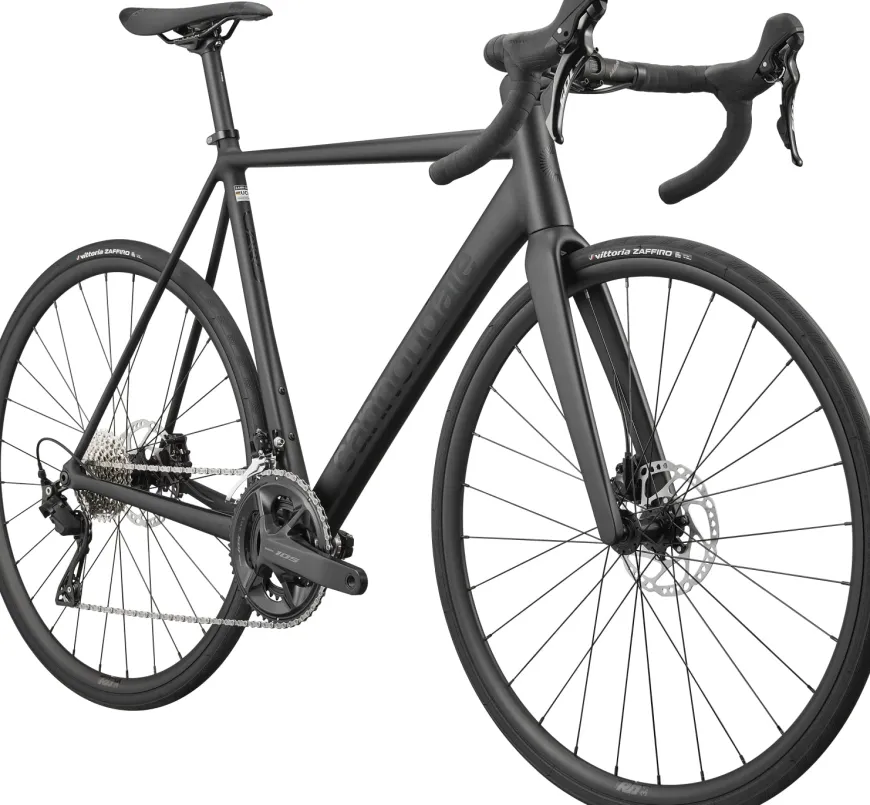

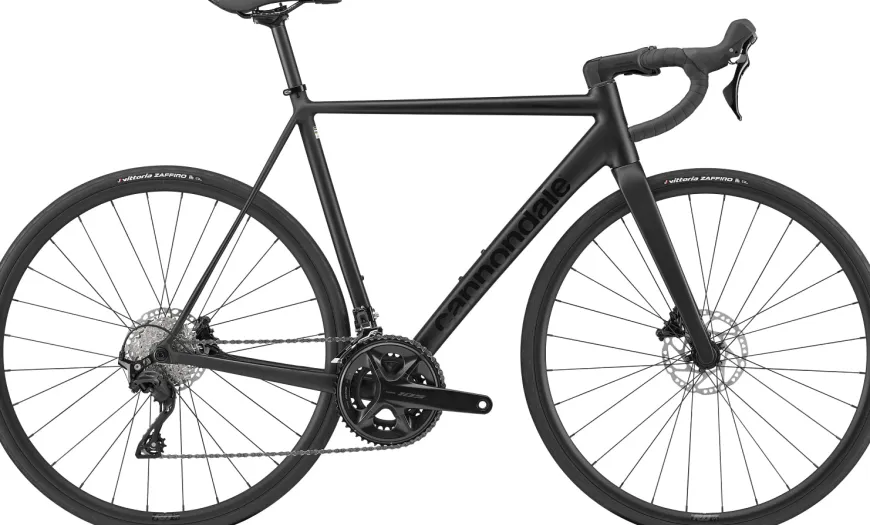

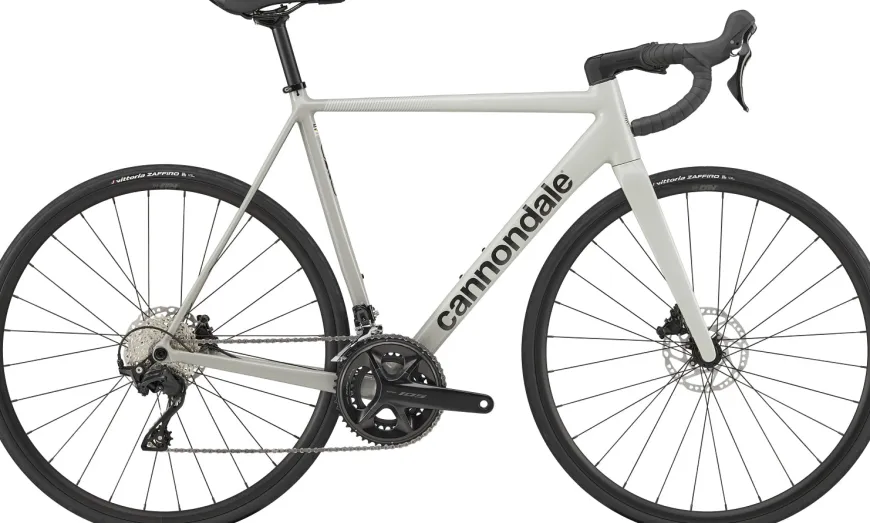

Model Description

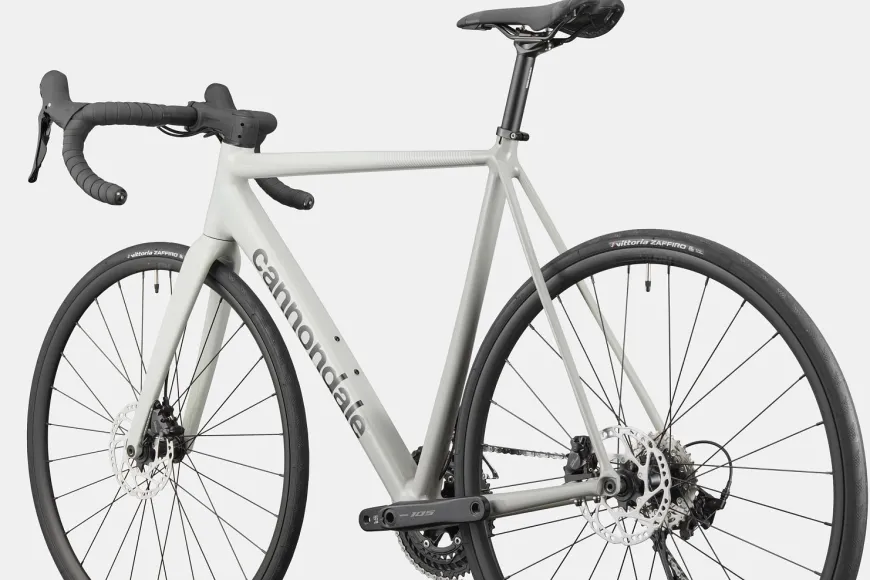

The most accessible way into the CAAD lineage, without diluting the essentials. CAAD14 3 combines the same SmartForm C1 Premium aluminum frame with Shimano 105 mechanical shifting—smooth, consistent, and made for long seasons of riding. Clean geometry, stable handling, and room for wider tires make it comfortable at tempo and confident in the red zone. Built for performance road riders who want metal they can race hard and ride every day.
What it’s for
All-in attacks. Full-gas sprints. Fearless cornering. Feeling alive.
Highlights
- CAAD14 SmartForm C1 Premium Alloy frame – high performance aluminum like it was meant to be
- CAAD14 full carbon Delta Steerer fork – clean internal cable routing with minimal frontal area
- Smooth, consistent, reliable 2×12-speed shifting from Shimano’s trusted 105 mechanical drivetrain
- Vision Trimax Compact bars and Cannondale C1 Conceal stem – ergonomic cockpit with hidden cables
Frameset
- Frame CAAD14, SmartForm C1 Premium Alloy, integrated cable routing, 12×142 thru-axle, BSA 68mm threaded BB, flat mount disc, UDH
- Fork CAAD14, full carbon, 1-1/8″ to 1-1/2″ Delta Steerer, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 55mm offset (44-54cm), 45mm offset (56-61cm)
- Headset Integrated, 1-1/8″ – 1.5″
Drivetrain

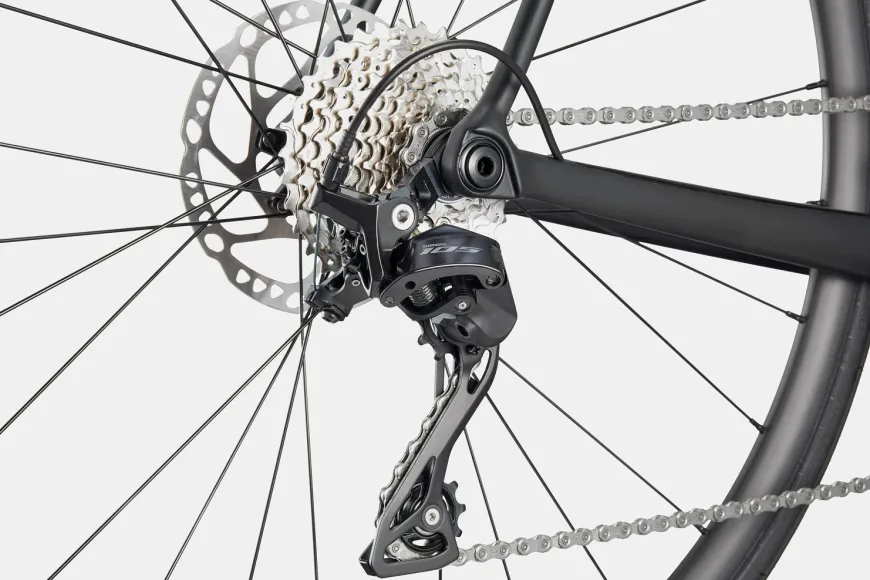

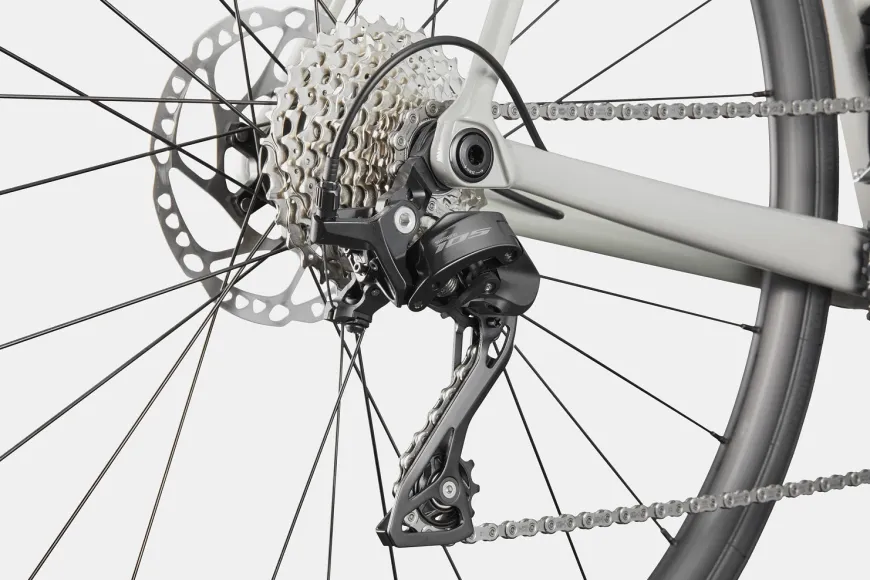

- Rear Derailleur Shimano 105 7100, 12-speed
- Front Derailleur Shimano 105 7100
- Shifters Shimano 105 R7100, 2×12-speed
- Chain Shimano 105 7100, 12-speed

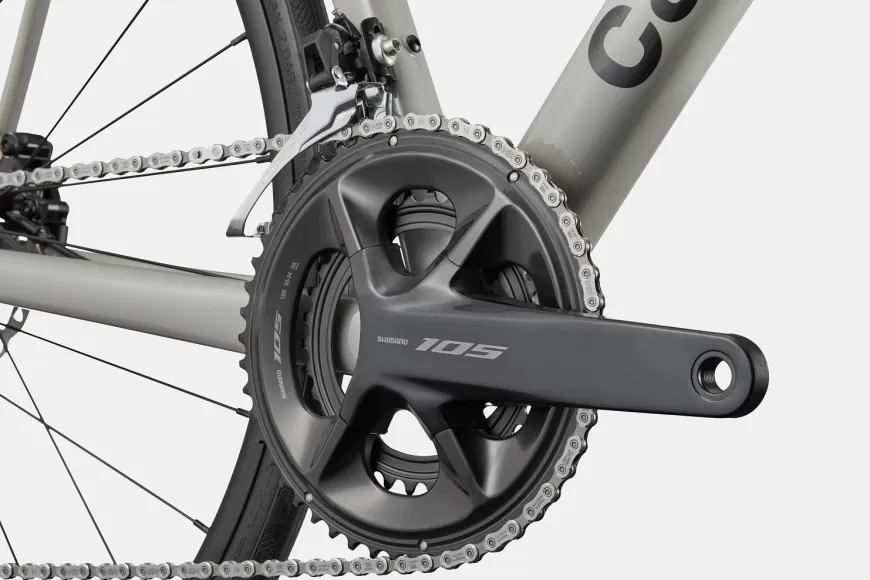

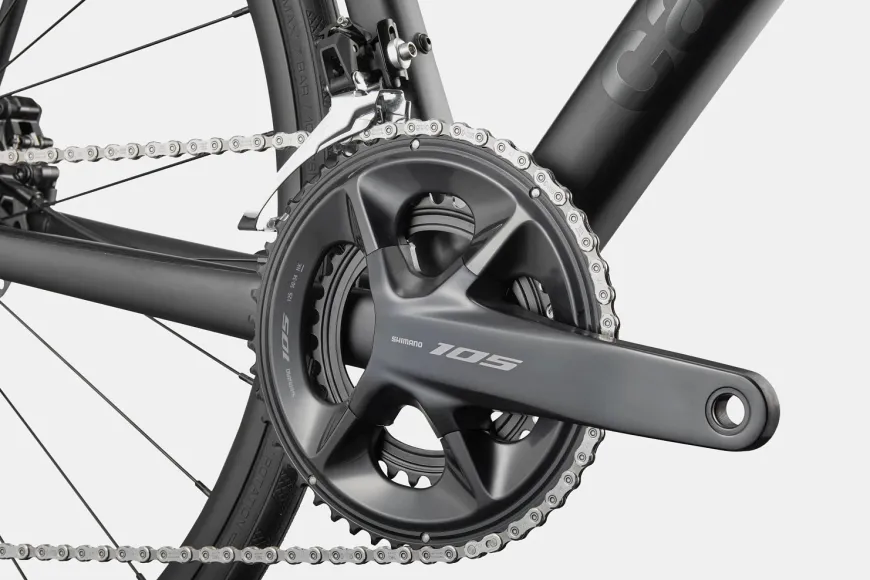

- Crank Shimano 105 R7100, 50/34: 165mm (48-51cm), 170mm (54-56cm) 172.5mm (58-61cm)
- Rear Cogs Shimano 105 R7100, 11-34, 12-speed
- Bottom Bracket Shimano BB-RS500, BSA 68
Brakes
- Brakes Shimano 105 R7170 hydraulic disc, 160/160mm RT70 rotors
- Brake Levers Shimano 105 R7100 hydraulic disc
Wheels
- Rims Cannondale RD 2.0 Disc, double wall w/ eyelet, 28h
- Spokes Stainless Steel, 14g
- Tire Size 28
- Wheel Size 700c
- Hubs Shimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm
- Tires Vittoria Zaffiro, 700x28c
Components
- Handlebar Vision Trimax Compact: 400mm (48-56cm), 420mm (58-61cm)
- Stem Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
- Grips Cannondale Bar Tape, 3.5mm
- Saddle Prologo Nago RS STN
- Seatpost Cannondale 3, 6061 Alloy, 27.2x350mm, 11mm offset
