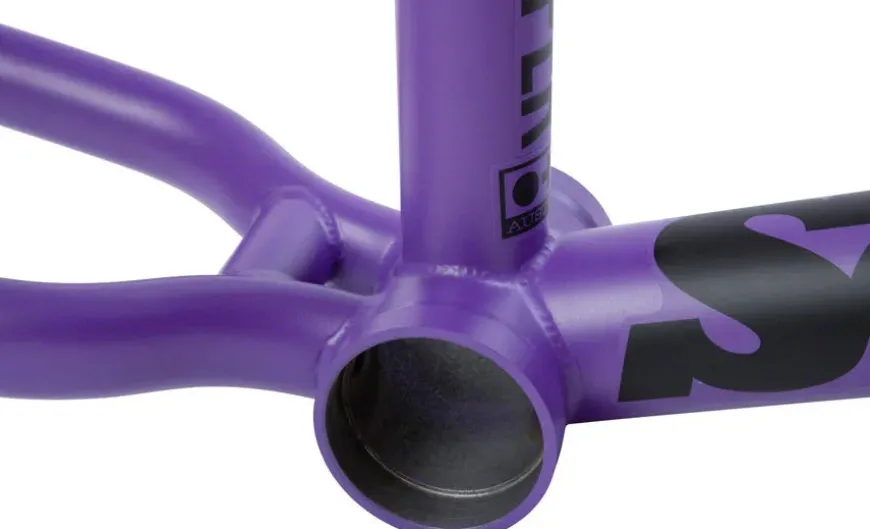

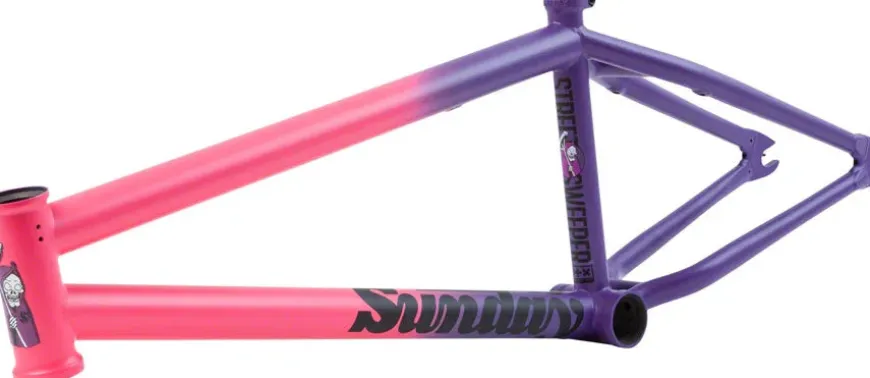

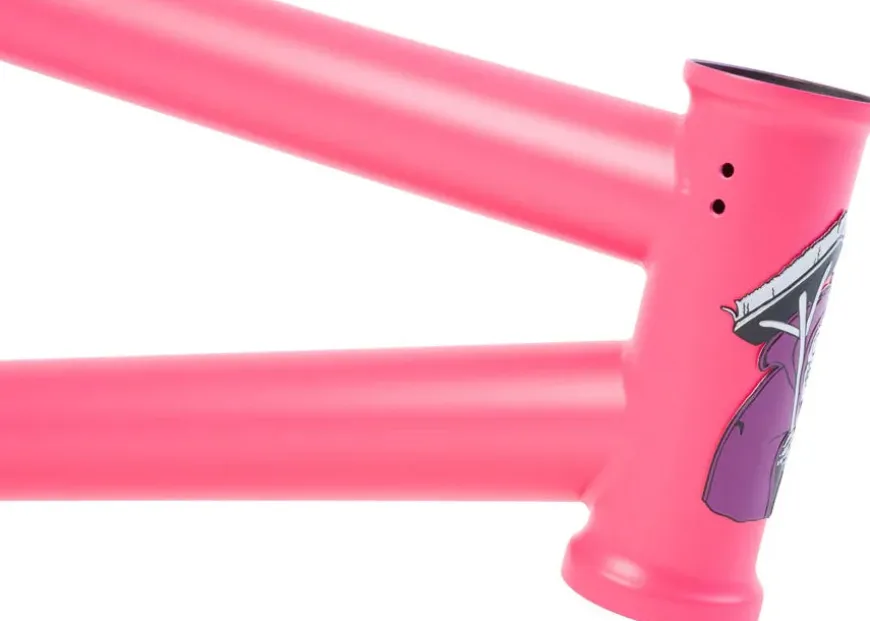

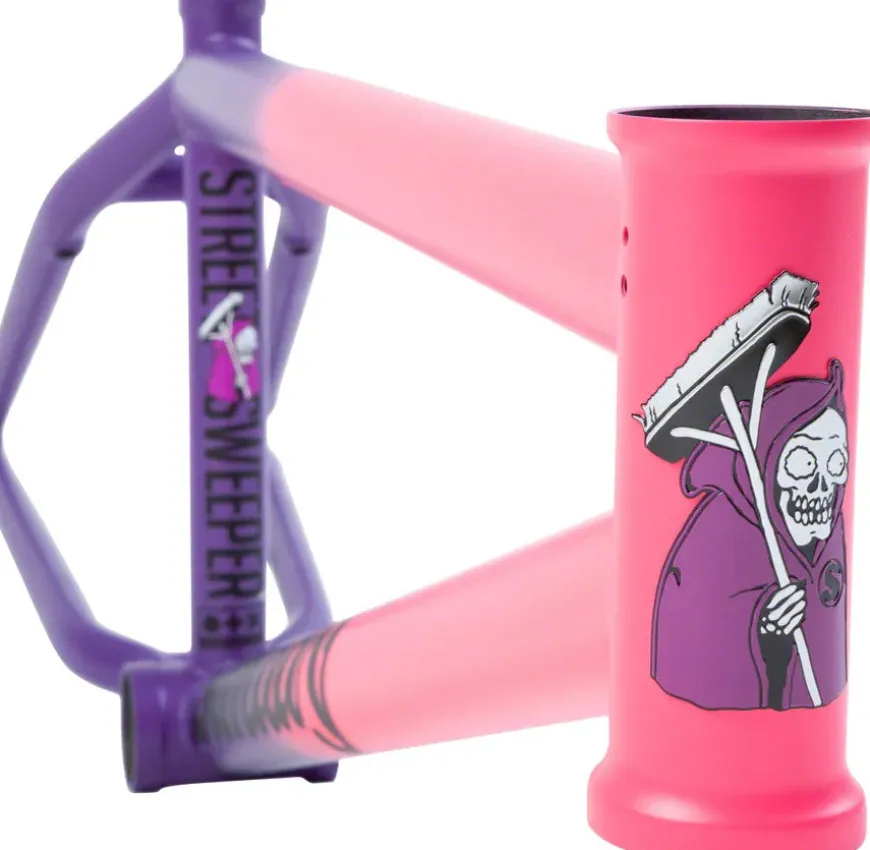

Sunday Street Sweeper BMX Frame – 20.75″ TT Pink/Purple

Jake Seeley’s signature frame is designed to complement his progressive, technical street riding.

The Street Sweeper evolves directly from Jake Seeley’s original Broadcaster frame by using shorter chain stays, a steeper head tube angle, a taller bottom bracket and smaller hollow dropouts with integrated chain tensioners.

Built with versatility in mind, the Street Sweeper features removable u-brake hardware and Gyro tabs. The frame’s front triangle makes use of traditional roundNightshift style top and down tubes with proven internal gusseting.

Features

• 100% 4130 Chromoly Frame
• Nightshiftstyle, double-butted, top and down tubes with proven internal gusseting.
• Integrated seat clamp
• Miter Cut Top Tube:
  A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction.
• Tapered Chain & Seat Stays:
  Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings.
• Hollow Dropouts with Chain Tensioners:
  Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal.
• Removable Brake Hardware:
  Proven, removable, brake mounts and cable guides/stops work flawlessly when installed and allow for a sleek overall look when they’re not.

Geometry

Top Tube Lengths:20.5″, 20.75″, or 21″
Head Tube Angle:75.25°
Seat Tube Angle:71°
Chainstay Length:12.70-13”
Bottom Bracket Height:11.7”
Standover:8.8”
Tire Clearance:2.4”
Head Tube Length:4.7”
Weight:5lbs
