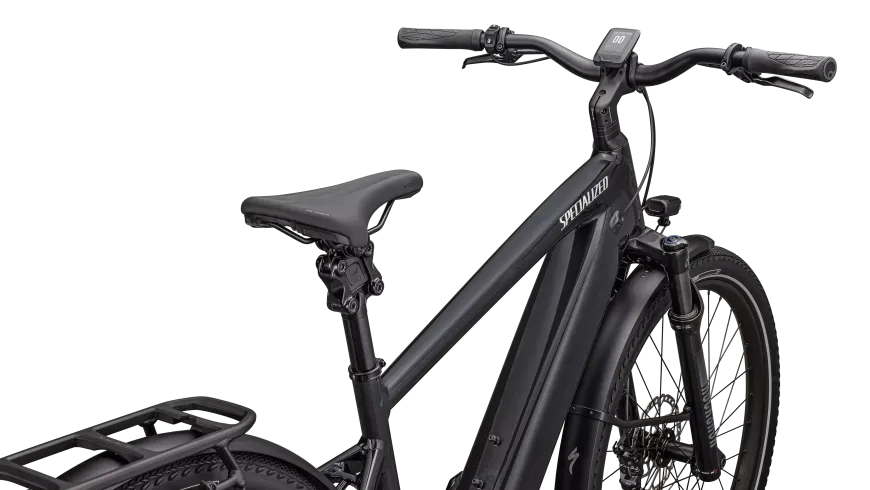

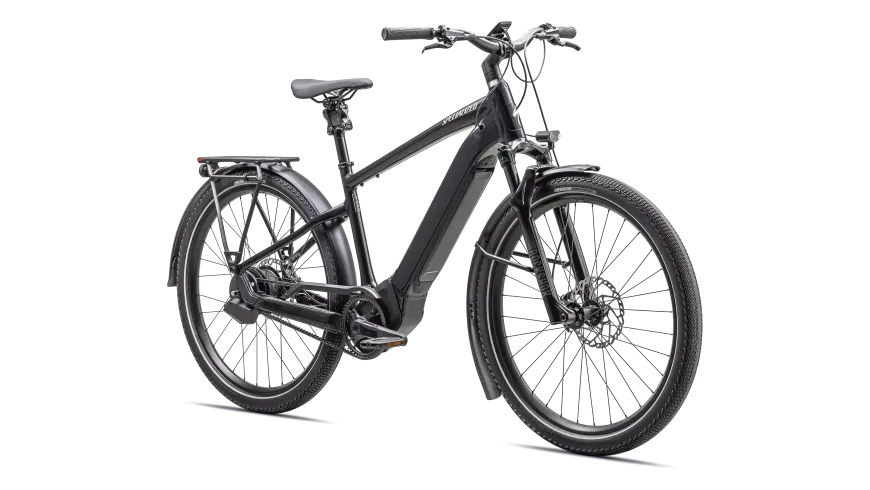

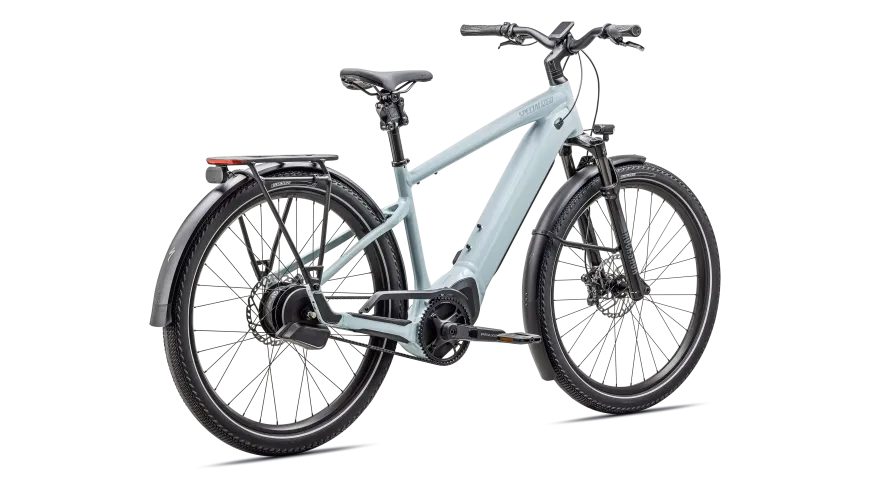

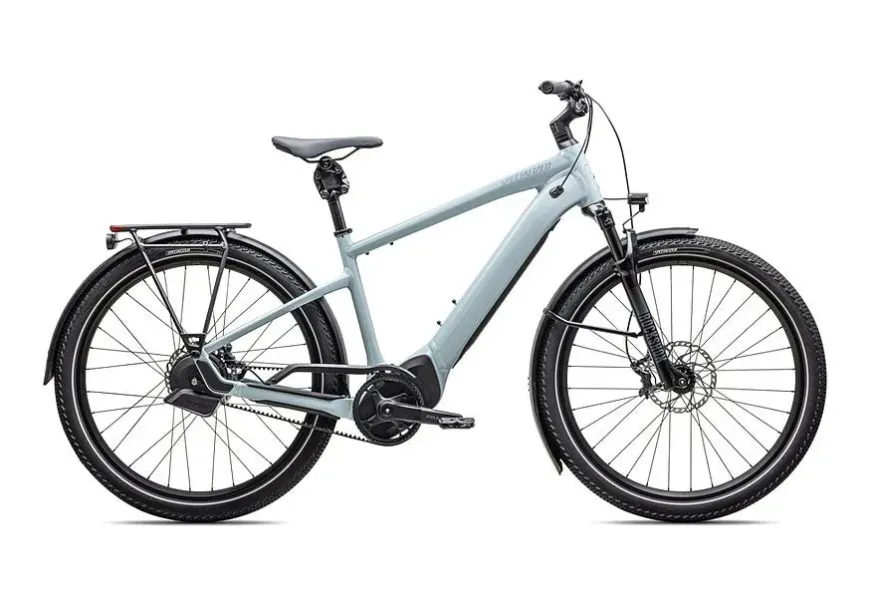

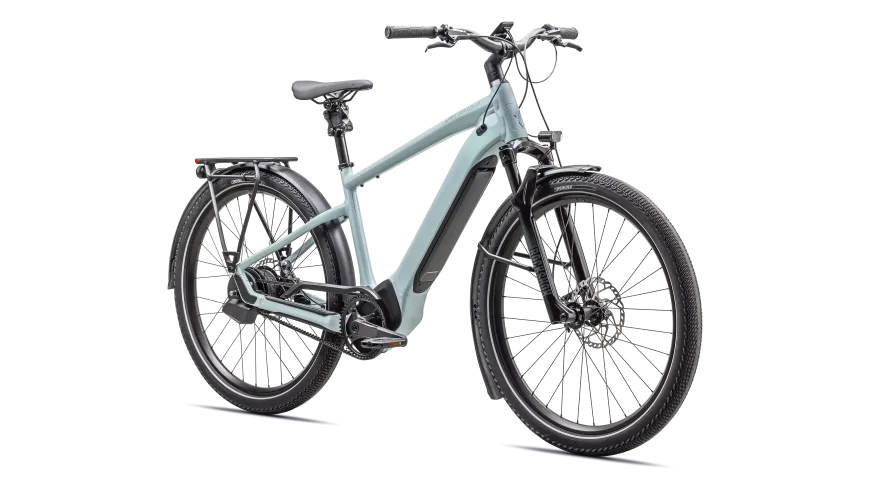

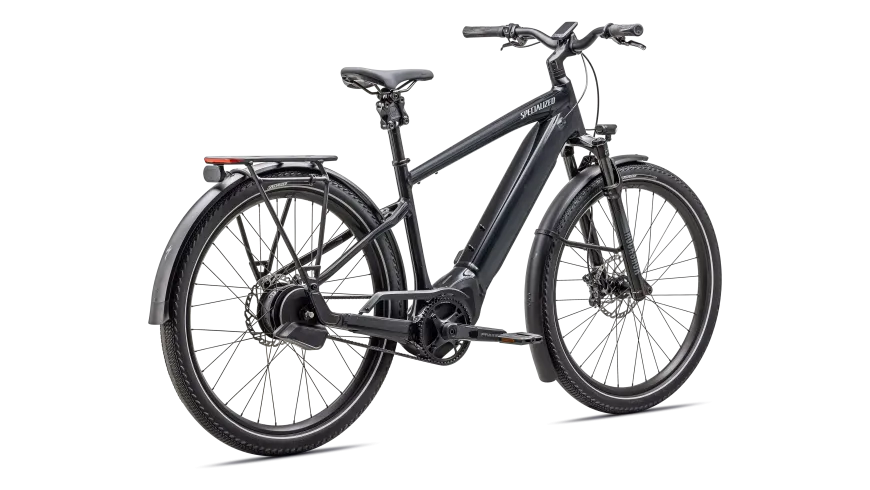

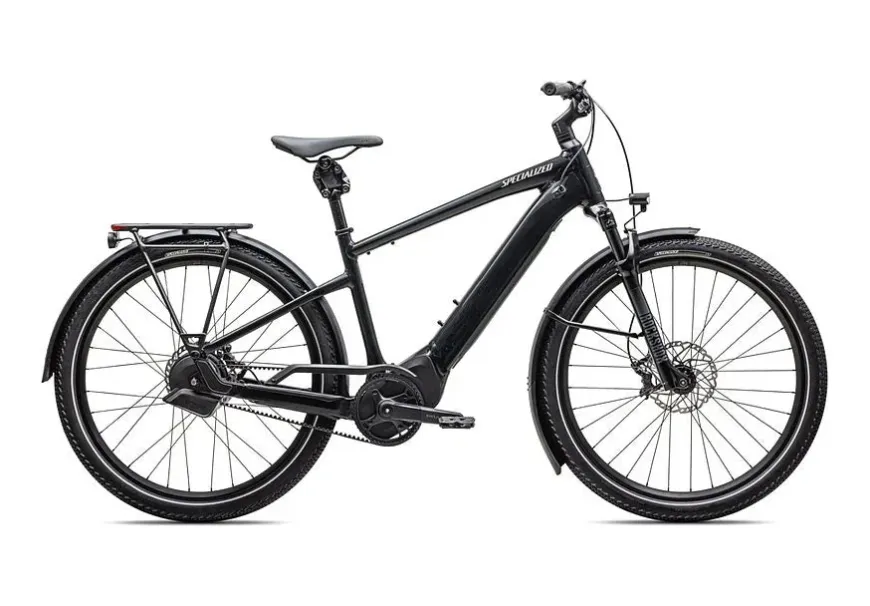

Vado 5.0 IGH UL (2025)

Consider this high-performance transportation bike your ultimate companion for speed, reliability, and confidence. Whether you’re loaded with gear or just heading out for a quick ride, its full power and extensive range will swiftly get you from ‘point A’ to ‘point B’ with ease.

Designed for e-powered transport, this bike offers a perfectly balanced ride with superior comfort, making it a true leader in its class.

TURBO: At the core is Turbo technology—an advanced, integrated electric system delivering unmatched power, a natural riding feel, anti-theft features, training insights, and a full-function bike computer.

POWERFUL: Experience yourself, just faster—this system senses your pedal force and amplifies it fourfold, making hills and long distances effortless.

COMFORTABLE AND CONFIDENT: Optimized body positioning and handling provide exceptional comfort, control, and confidence. Powerful hydraulic disc brakes ensure precise stopping power, while larger tires maximize traction for smooth turns and stops.

SMOOTH: Ride comfortably with an 80mm front suspension fork, higher volume tires, and a plush suspension seatpost that absorbs bumps, smoothing your journey.

SECURE: Built-in anti-theft lock disables the motor at the push of a button, requiring your phone connection or personalized pin to reactivate. The removable battery locks securely in place or can be taken with you, and a motion sensor alarm alerts you if the bike is tampered with.

Note: Motor speed limits vary by region based on local regulations and can affect range; higher speed limits may reduce battery life.

• Equipped with DRYTECH fenders, LED front and rear lights, and a heavy-duty rear rack rated for 27kg capacity. Compatible with child bike seats and rated to tow thru-axle trailers.
• Fully integrated, removable, and lockable downtube battery for easy charging and security.
• Integrated Garmin Radar sensor detects vehicles up to 140 meters behind you, providing visual, audible, and haptic alerts through the MasterMind display.
• Long-range capability allows rides up to 62 miles (100 km) or 4.5 hours on a single charge in eco mode.
• MasterMind display and companion app offer real-time ride data, support level tuning, range optimization, advanced diagnostics, and more.
• Proven smooth efficiency through custom bump analysis, combined with suspension features and high-volume tires to flatten rough roads.
• Enviolo AUTOMATiQ Internal Gear Hub (IGH) stepless shifting automatically adjusts gears based on your pedal cadence for a “set it and forget it” experience, enhancing safety and comfort.
• Turbo Full Power 2.2 motor paired with a 710Wh battery delivers smooth, seamless, and whisper-quiet pedal assistance up to 28 mph, intuitively responding to your input.
• Turbo System Lock allows you to disable the motor and activate the motion sensor alarm via the app, ensuring only the owner can reactivate the motor.

E-bike System

Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V
UI/Remote: MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages

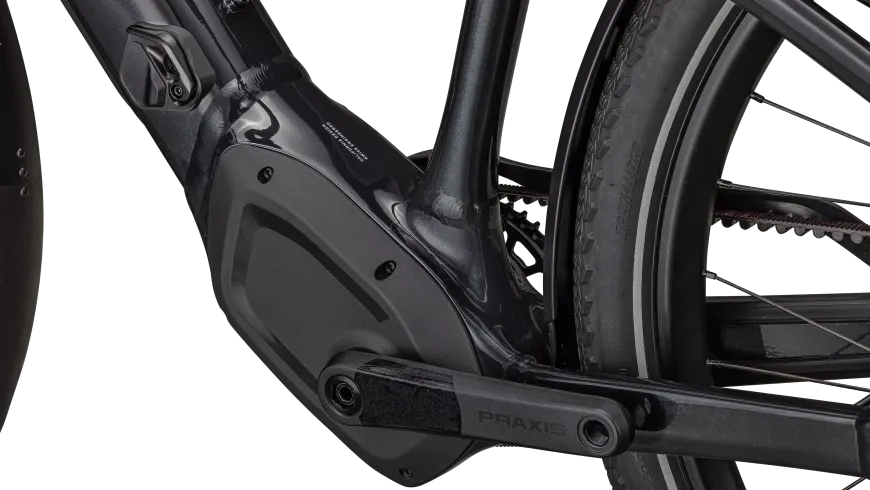

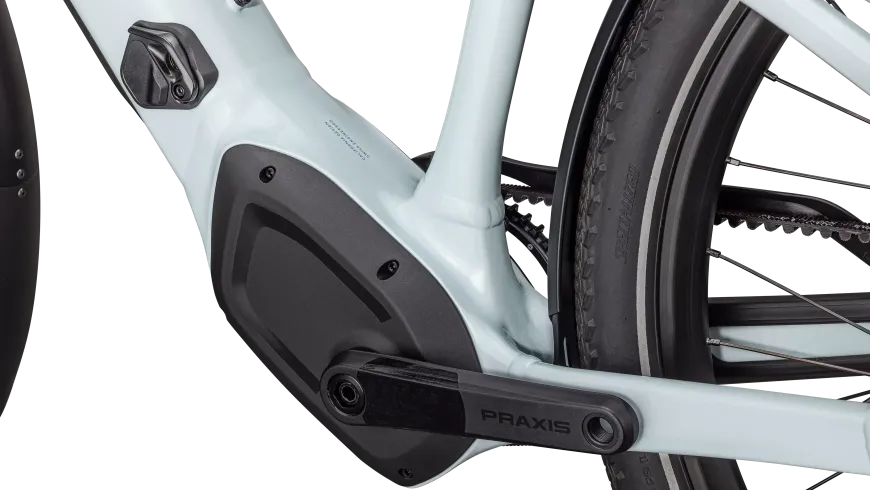

Motor: Specialized 2.2, 90Nm torque, custom tuned motor, 250W nominal
Battery: Specialized U2-710, integrated battery, state of charge display, 710Wh, UL

Frameset

Frame: E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
Seat Binder: Specialized Alloy 34.9, Steel Bolt

Suspension

Fork: Rockshox Recon Silver RL, 80mm travel, Motion-Control, fender-mounts

Brakes

Front Brake: Shimano 4 pistons, CUES, BL-U8000, Br-U8020, Sm-Ma-F180P/P2
Rear Brake: Shimano 4 pistons, CUES,BL-U8000, Br-U8020

Drivetrain

Rear Derailleur: Automatic Hub Interface, AHI-PRO-40T-OE-1, enviolo Netherlands,17NM, 40T Spline Compatible
Crankset: Custom alloy forged crankarms, 170mm
Chaincase: Custom chaincover
Chain: Gates Carbon Drive CDX 122t belt, black
Cassette: Gates Carbon Drive CDX 22t sprocket, silver
Chainrings: Gates Carbon Drive CDX 50T chainring, black
Internal Gear Hub: enviolo AUTOMATiQ Pro shifting interface

Wheels & Tires

Rims: 650b disc, double-wall alloy, pinned, 32h
Spokes: DT Swiss Industry
Front Tire: Pathfinder Sport Reflect, 650Bx2.3
Rear Tire: Pathfinder Sport Reflect, 650Bx2.3
Front Hub: Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Inner Tubes: Standard 40mm SV 650Bx1.75-2.4
Rear Hub: enviolo Heavy Duty, 380% range, 6-bolt, 10x135mm, 32h

Cockpit

Saddle: Bridge Sport, Steel rails, 155mm

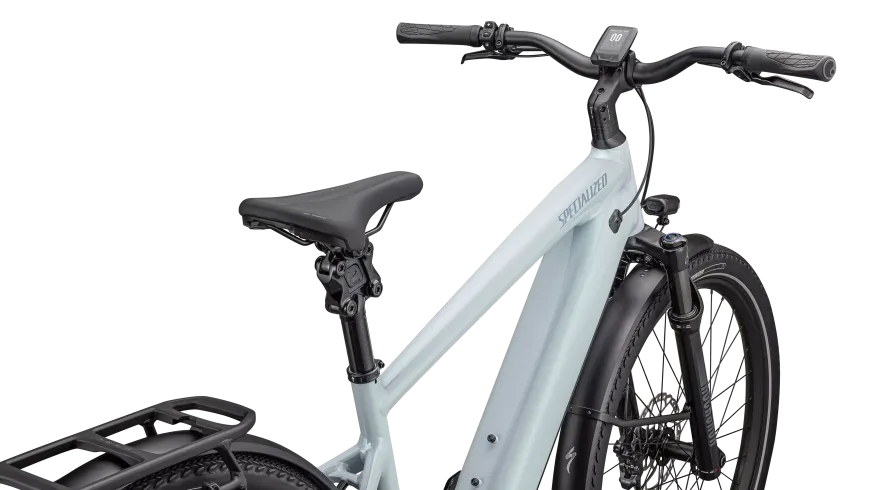

SeatPost: Cane Creek, Thudbuster St, suspended, 30.9 mm
Grips: ERGON, GA30-S Custom, 134.8mm Length

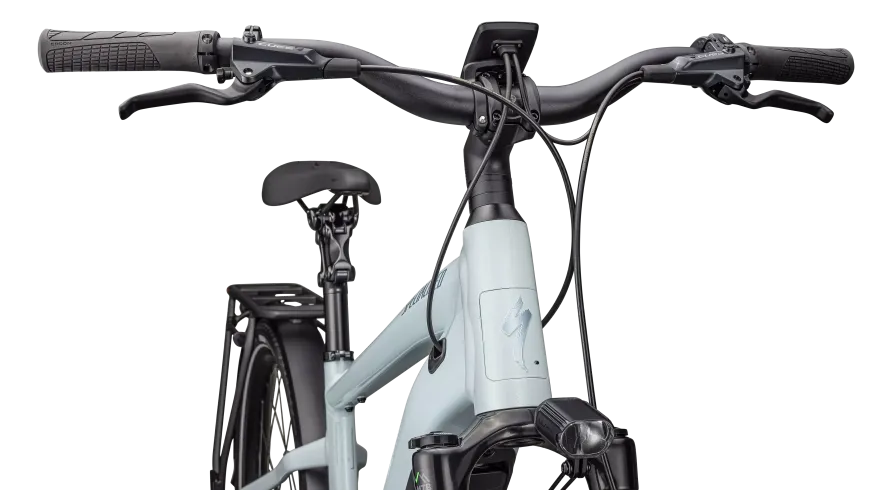

Stem: Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp

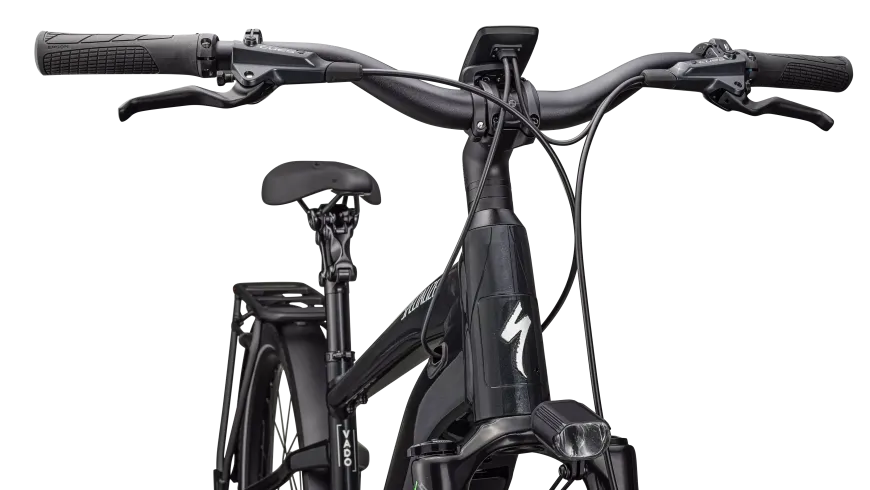

Handlebars: Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm

Accessories

Fenders: Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
Mirror: Handlebar rear view mirror, aluminum
Radar: Integrated Garmin Radar, with custom information displayed directly on the Mastermind TCD
Headlight: LEZYNE Power StVZO E500+, 500 Lumens
Taillight: Spanninga, Stvzo, Commuter Glow With Brake XEr
Pedals: Specialized Commuter w/ grip tape & reflectors
Bell: Specialized brass bell
Kickstand: Specialized kickstand, 40mm mount

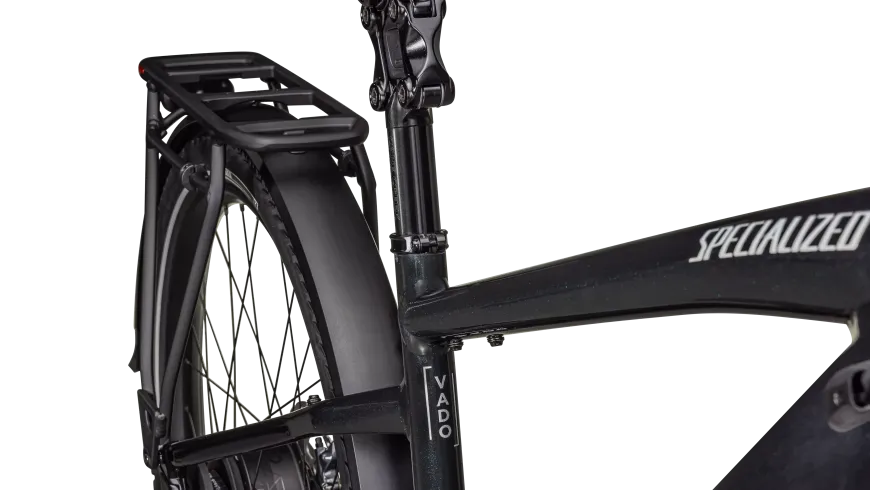

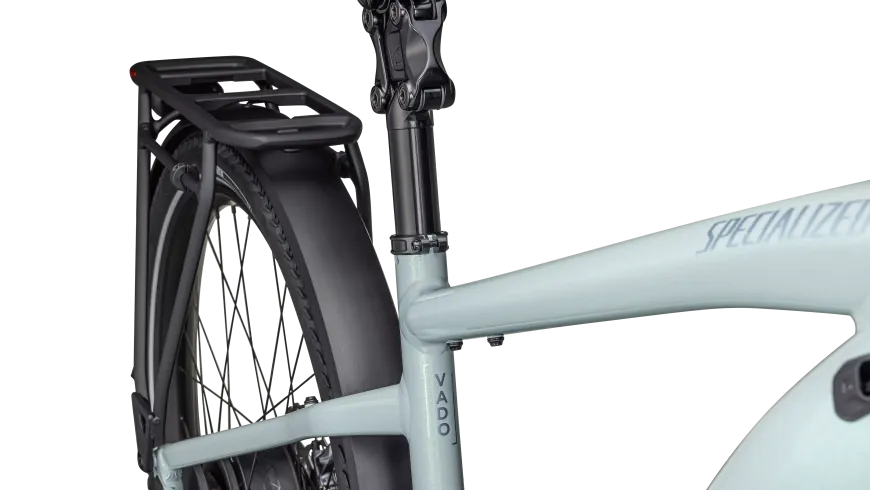

Rack: Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load
Bike Lock: Turbo System Lock

Product details

Product ID: 277423
Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. For information on lithium-ion battery standards and regulations in New York City

Weight

Weight: 27.10 kg (59 lb, 11.92 oz)
Weight Size: MD
